Seco

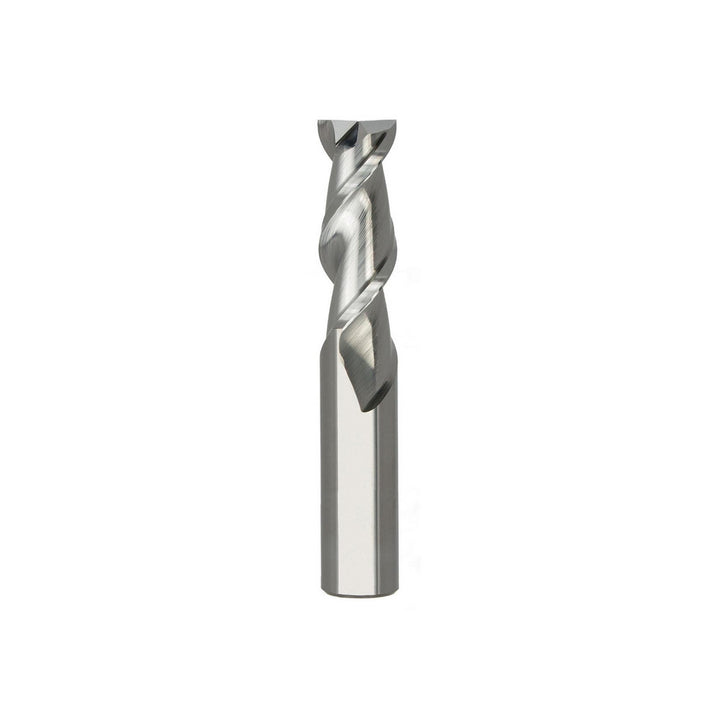

3/16" 2-Flute Solid Carbide Square End Mill - Seco 17002952

MFR# 17002952Series A245

$27.75List $35.60 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Seco 17002952 is a 3/16 2-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 5/16 length of cut, 2 overall length. Series A245.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in5/16

Length of cut range0.3000 - 0.5000

Length typeShort

Material gradeMicrograin

Mill diameter in3/16

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes2

Overall length in2

Overall length tolerance+0.0600/-0.0600 in

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter in3/16

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
