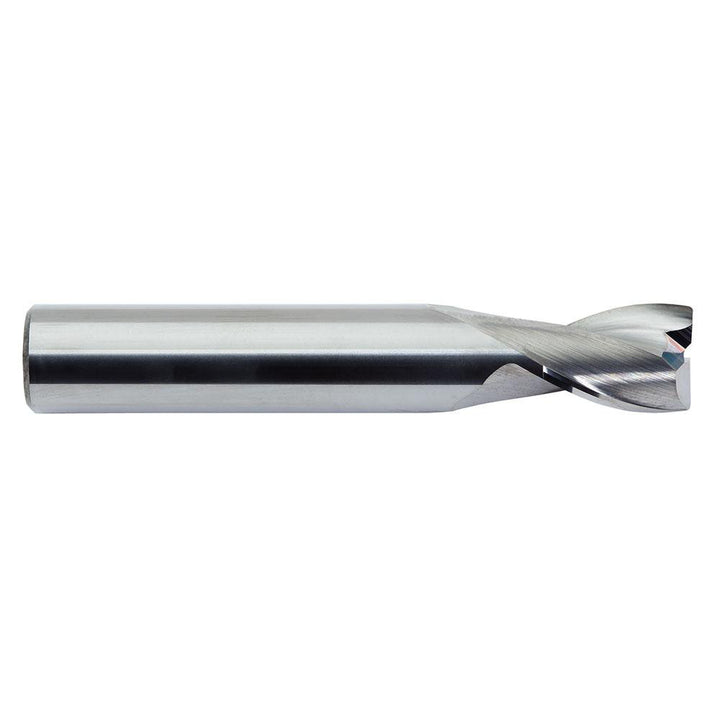

3/8" 2-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13537501

M.A. Ford.

3/8" 2-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13537501

MFR# 13537501Series 135

$116.82List $147.22 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

The M.A. Ford. 13537501 is a 3/8 2-flute Solid Carbide (Micrograin) corner radius end mill. Suited for non-ferrous metal. 1/2 length of cut, 3 overall length. Series 135.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Corner radius in1/64
Corner radius tolerance+0.0020 to -0.0020 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Helix angle30
Helix styleMedium
Length of cut in1/2
Length typeRegular
Manufacturers catalog number13537501
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Material removal typeRoughing & Finishing
Maximum helix angle30
Mill diameter in3/8
Mill diameter tolerance+0.0000 to -0.0030 in
Minimum helix angle30
Number of flutes2
Overall length in3
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in1/2
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
