M.A. Ford.

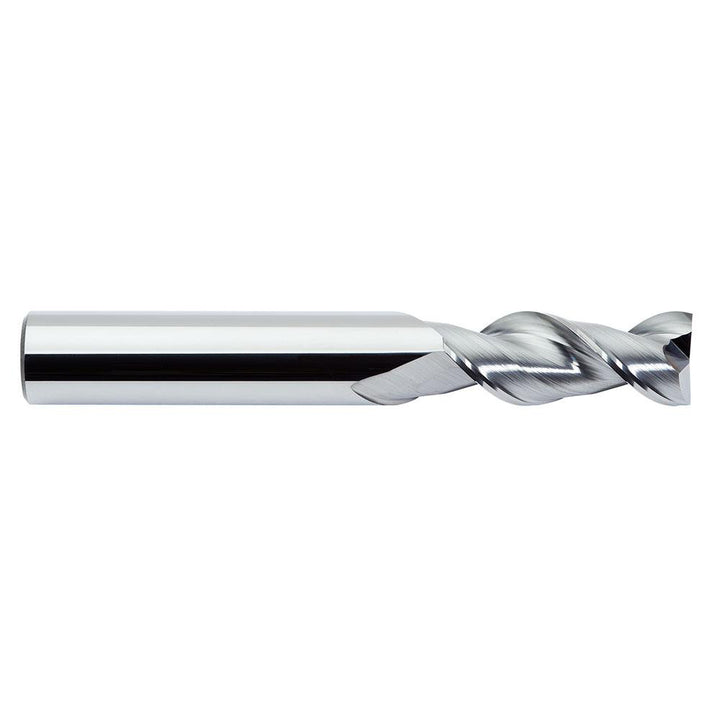

3/8" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 13637501

MFR# 13637501Series 136

$126.88List $162.72 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The M.A. Ford. 13637501 is a 3/8 2-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1-1/2 length of cut, 3-1/4 overall length. Series 136.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle45

Length of cut in1-1/2

Length of cut range1.5000 - 2.0000

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance+0.000 to -0.003 in

Number of flutes2

Overall length in3-1/4

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
