M.A. Ford.

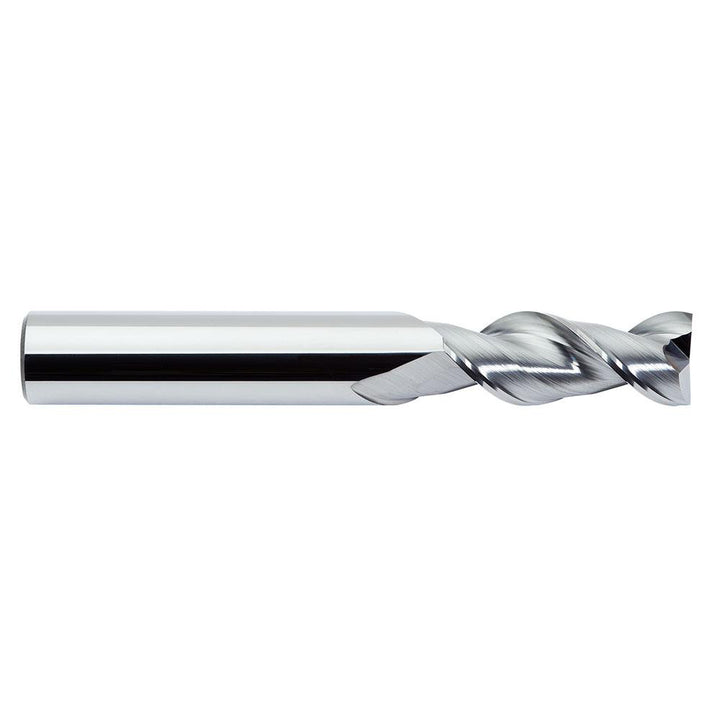

1/2" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 13650007

MFR# 13650007Series 136

$241.37List $309.56 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The M.A. Ford. 13650007 is a 1/2 2-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 2-1/2 length of cut, 5 overall length. Series 136.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle45

Length of cut in2-1/2

Length of cut range2.0000+

Material gradeMicrograin

Mill diameter in1/2

Mill diameter tolerance+0.000 to -0.003 in

Number of flutes2

Overall length in5

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
