M.A. Ford.

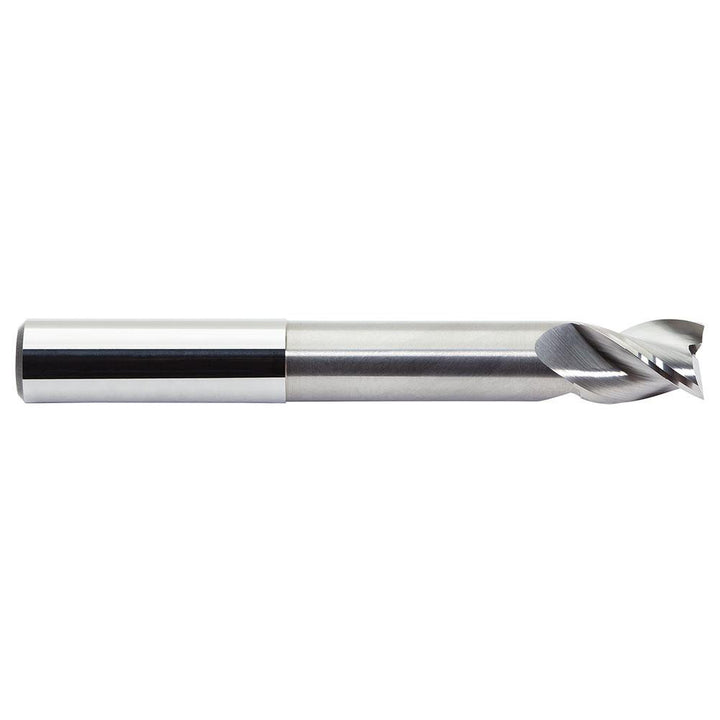

3/8" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 13837503N

MFR# 13837503NSeries 138N

$107.49List $137.85 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The M.A. Ford. 13837503N is a 3/8 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 5/8 length of cut, 4 overall length. Series 138N.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle36

Length of cut in5/8

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance+0.000 to -0.0005 in

Neck length2.125

Number of flutes3

Overall length in4

Primary workpiece materialNon-Ferrous Metal

Reach length2.13

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
