5/8" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 16362500

M.A. Ford.

5/8" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 16362500

MFR# 16362500Series 163

$160.96List $206.44 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide

Description

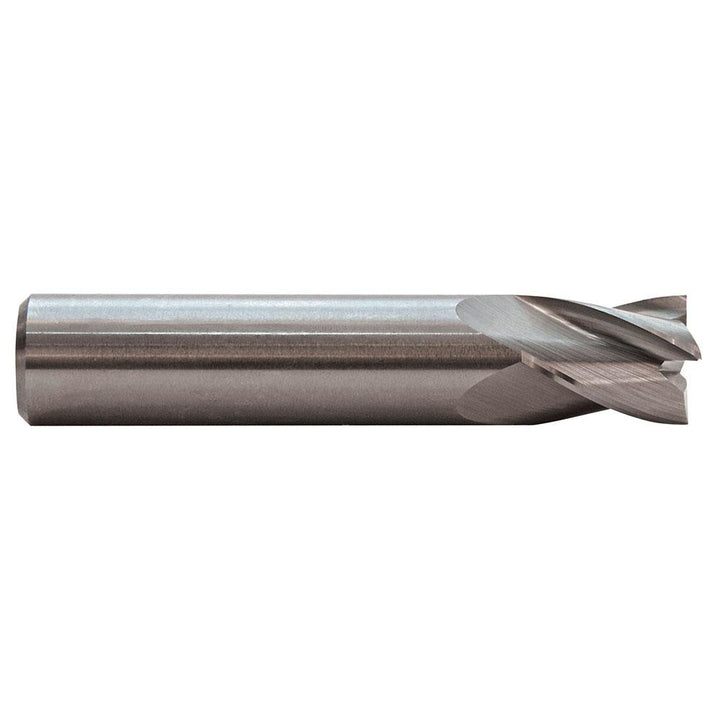

The M.A. Ford. 16362500 is a 5/8 4-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 3 overall length. Series 163.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeStub
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.003 in
Number of flutes4
Overall length in3
Shank diameter in5/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
