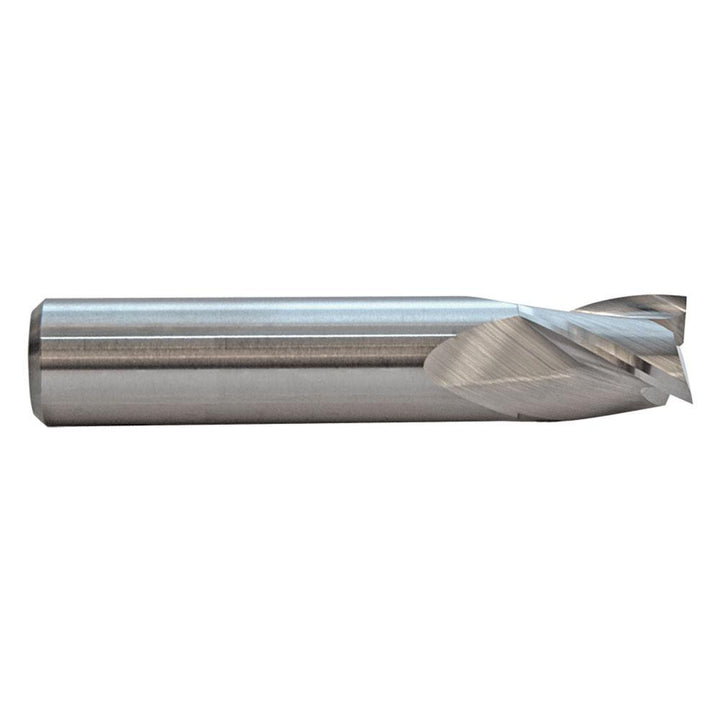

1/8" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - M.A. Ford. 16912500R.010A

M.A. Ford.

1/8" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - M.A. Ford. 16912500R.010A

MFR# 16912500R.010ASeries 169

$70.63List $89.01 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The M.A. Ford. 16912500R.010A is a 1/8 3-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1/4 length of cut, 1-1/2 overall length. Series 169.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Helix styleMedium
Length of cut in1/4
Length typeShort
Manufacturers catalog number16912500R.010A
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material removal typeRoughing & Finishing
Mill diameter in1/8
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes3
Overall length in1-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Reach length in1/4
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
