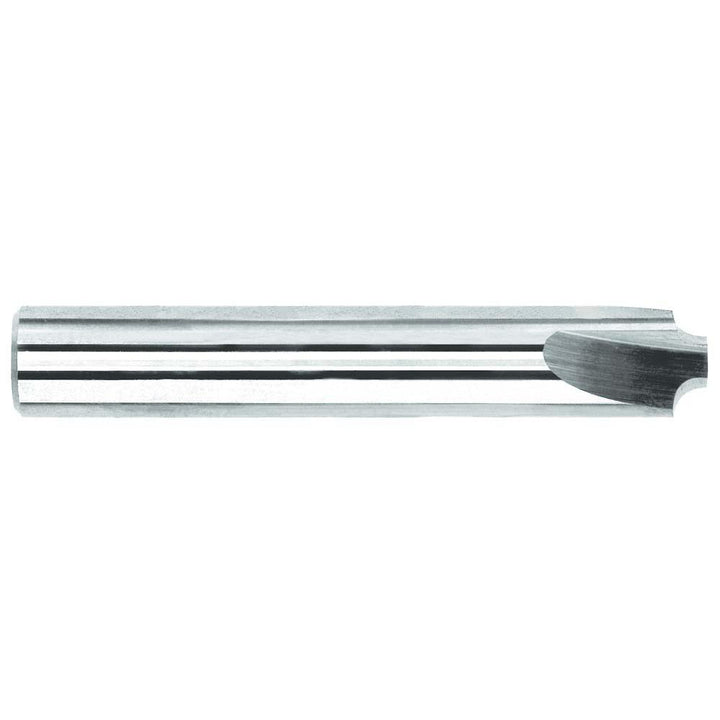

0.1250" 3-Flute Solid Carbide Corner Rounding End Mill - Melin Tool 16092

Melin Tool

0.1250" 3-Flute Solid Carbide Corner Rounding End Mill - Melin Tool 16092

MFR# 16092Series RMG

$24.85List $31.32 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingUncoated

Description

The Melin Tool 16092 is a 0.1250 3-flute Solid Carbide corner rounding end mill. 2 overall length. Series RMG.

Specifications

Coating finishUncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Helix angle0
Length of cut0.0310
Mill diameter0.1250
Number of flutes3
Overall length in2
Radius in1/32
Radius tolerance+0.001 to -0.001
Shank diameter in3/16
Single or double endSingle
Tip diameter in1/8
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

M.A. Ford.1/8" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - M.A. Ford. 16912500R.010A $70.63 Harvey Tool1/8" 3-Flute Solid Carbide Corner Radius End Mill - Harvey Tool 904208 $33.75 OSG1/8" 3-Flute Corner Radius & Corner Chamfer End Mill - OSG 44700111 $143.52 Micro 1001/8" 3-Flute Solid Carbide Corner Rounding End Mill, AlTiN - Micro 100 CRE-125-031X $62.51
