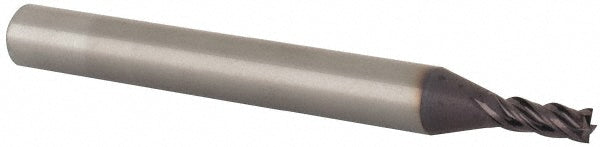

0.1181" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 17711800A

M.A. Ford.

0.1181" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 17711800A

MFR# 17711800ASeries 177

$54.50List $68.68 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

The M.A. Ford. 17711800A is a 0.1181 4-flute Solid Carbide square end mill. 0.3150 length of cut. Series 177.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle35/38
Length of cut0.3150
Length of cut range0.3000 - 0.5000
Mill diameter0.1181
Mill diameter tolerance+0.000 to -0.040 mm
Number of flutes4
Overall length (mm)57.00
Shank diameter (mm)6.00
Shank diameter tolerance+0/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
