0.1968" 4-Flute Solid Carbide Square End Mill, TiAlN - M.A. Ford. 17719600A

MFR# 17719600ASeries 177

$44.75List $57.39 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

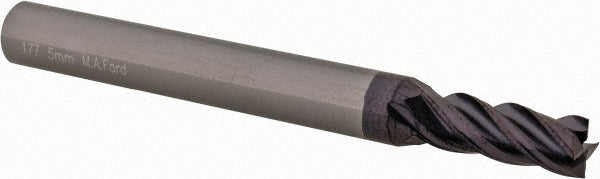

The M.A. Ford. 17719600A is a 0.1968 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. 0.5118 length of cut. Series 177.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut0.5118

Length of cut range0.5000 - 0.6000

Material gradeMicrograin

Mill diameter0.1968

Mill diameter tolerance+0.000/-0.048 mm

Number of flutes4

Overall length (mm)57

Shank diameter0.2362

Shank diameter tolerance+0/-0.008 mm

Shank typeStraight-Cylindrical

Variable helixYes

Variable indexYes
