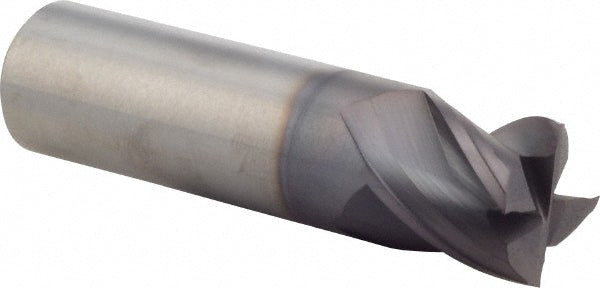

3/4" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 17775000A

M.A. Ford.

3/4" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 17775000A

MFR# 17775000ASeries 177

$309.22List $396.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide

Description

The M.A. Ford. 17775000A is a 3/4 4-flute Solid Carbide square end mill. 3/4 length of cut, 3 overall length. Series 177.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle35/38
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Mill diameter in3/4
Mill diameter tolerance+0.000 to -0.003 in
Number of flutes4
Overall length in3
Shank diameter in3/4
Shank diameter tolerance+0/-0.00051 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
