M.A. Ford.

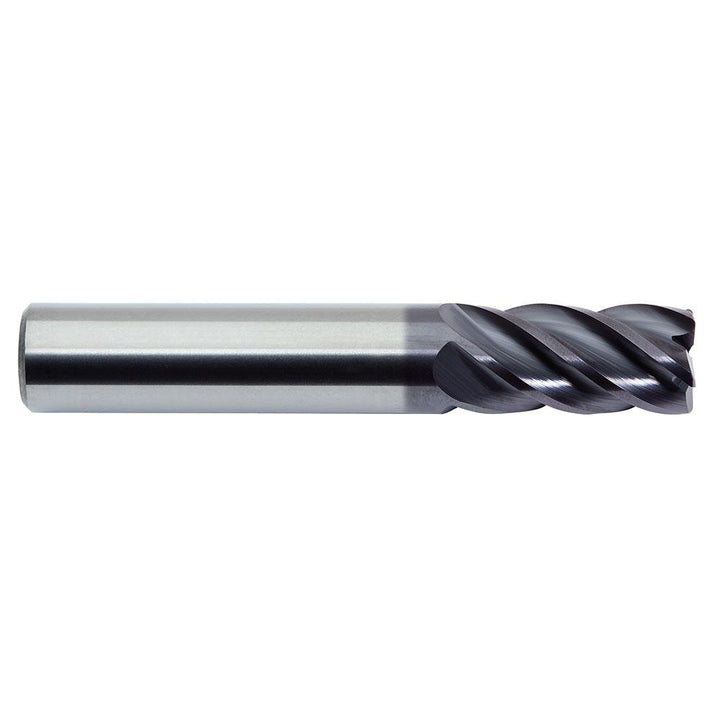

5/8" 5-Flute Solid Carbide Square End Mill, ALtima - M.A. Ford. 17862510AW

MFR# 17862510AWSeries 178W

$232.60List $298.32 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingALtima

Description

The M.A. Ford. 17862510AW is a 5/8 5-flute Solid Carbide (Micrograin) square end mill with a ALtima finish for longer tool life. 1-1/4 length of cut, 3-1/2 overall length. Series 178W.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishALtima

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeStandard

Material gradeMicrograin

Mill diameter in5/8

Mill diameter tolerance+0.000 to -0.003 in

Number of flutes5

Overall length in3-1/2

Shank diameter in5/8

Shank diameter tolerance+0.0000/-0.00043 in

Shank typeWeldon Flat

Variable helixNo

Variable indexNo
