Melin Tool

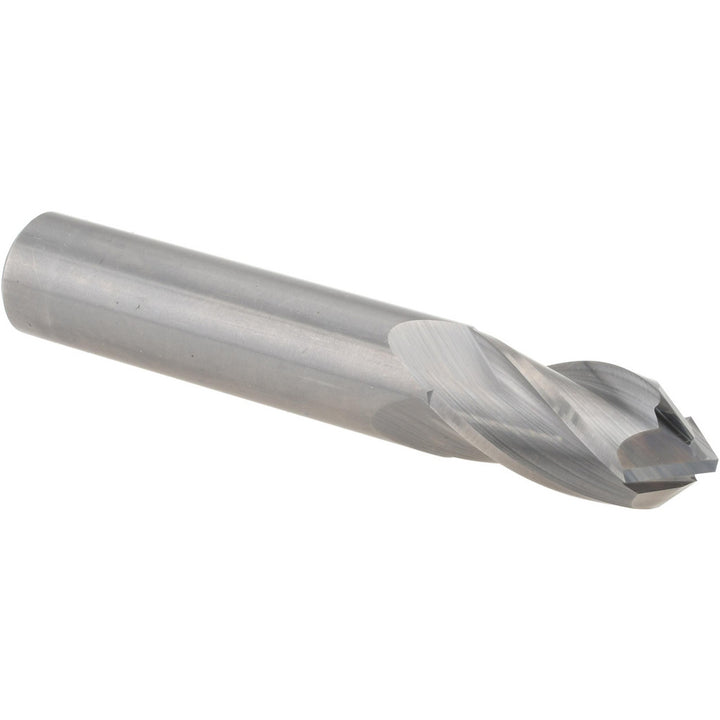

1/2" 4-Flute Solid Carbide Drill Mill End Mill - Melin Tool 11642
MFR# 11642Series CCMG-__-DP82
$75.19List $96.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
Description
The Melin Tool 11642 is a 1/2 4-flute Solid Carbide (Micrograin) drill mills end mill. 1 length of cut, 3 overall length. Series CCMG-__-DP82.
Specifications
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Helix angle30
Length of cut in1
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in3
Point angle90
Primary material applicationChamfering; Countersinking; Drilling; Side Milling; Spotting
Shank diameter in1/2
Shank diameter tolerance+0.0000 - -0.0020 in
