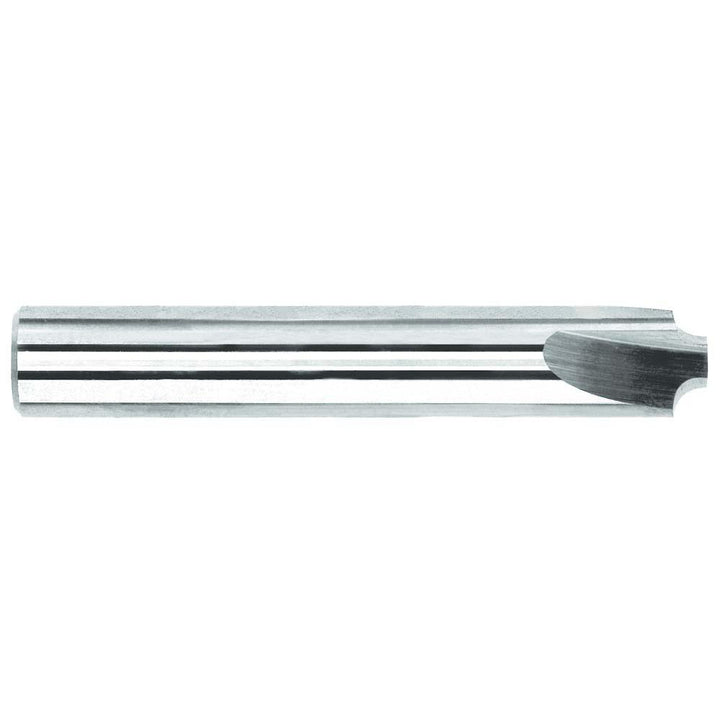

0.1250" 4-Flute Solid Carbide Corner Rounding End Mill - Melin Tool 16099

Melin Tool

0.1250" 4-Flute Solid Carbide Corner Rounding End Mill - Melin Tool 16099

MFR# 16099Series RCMG

$24.51List $31.44 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The Melin Tool 16099 is a 0.1250 4-flute Solid Carbide corner rounding end mill. 2 overall length. Series RCMG.

Specifications

Coating finishUncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Helix angle0
Length of cut0.0310
Mill diameter0.1250
Number of flutes4
Overall length in2
Radius in1/32
Radius tolerance+0.001 to -0.001
Shank diameter in3/16
Single or double endSingle
Tip diameter in1/8
