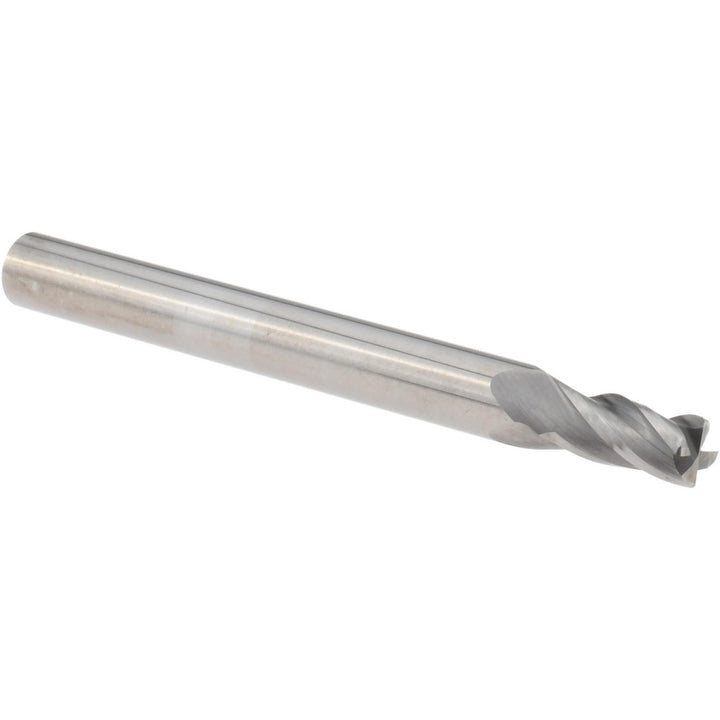

5/32" 4-Flute Solid Carbide Corner Radius End Mill - Melin Tool 16905
MFR# 16905Series CCMGS
$20.52List $25.86
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Melin Tool 16905 is a 5/32 4-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, superalloys & titanium, non-ferrous metal. 5/16 length of cut, 2 overall length. Series CCMGS.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleMedium
Length of cut in5/16
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal
Material removal typeRoughing
Mill diameter in5/32
Mill diameter tolerance0.0000/-0.0020 in
Number of flutes4
Overall length in2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal
Shank diameter in3/16
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
