Melin Tool

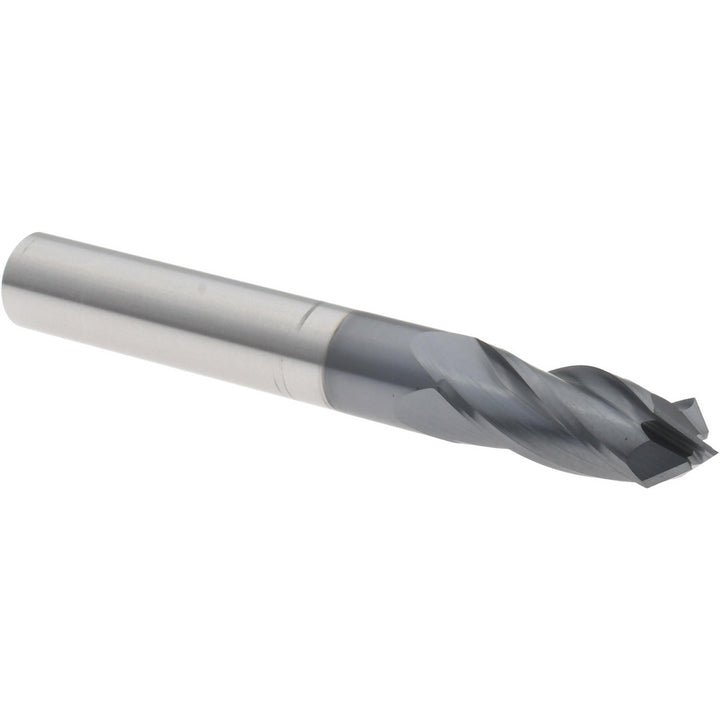

5/16" 4-Flute Solid Carbide Drill Mill End Mill, AlTiN - Melin Tool 51639

MFR# 51639Series CCMG-__-DP

$43.45List $55.72 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Melin Tool 51639 is a 5/16 4-flute Solid Carbide (Micrograin) drill mills end mill with a AlTiN finish for longer tool life. 13/16 length of cut, 2-1/2 overall length. Series CCMG-__-DP.

Specifications

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Flute directionRight Hand

Helix angle30

Length of cut in13/16

Material gradeMicrograin

Mill diameter in5/16

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in2-1/2

Point angle90

Primary material applicationChamfering; Countersinking; Drilling; Side Milling; Spotting

Shank diameter in5/16

Shank diameter tolerance+0.0000 - -0.0020 in

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
