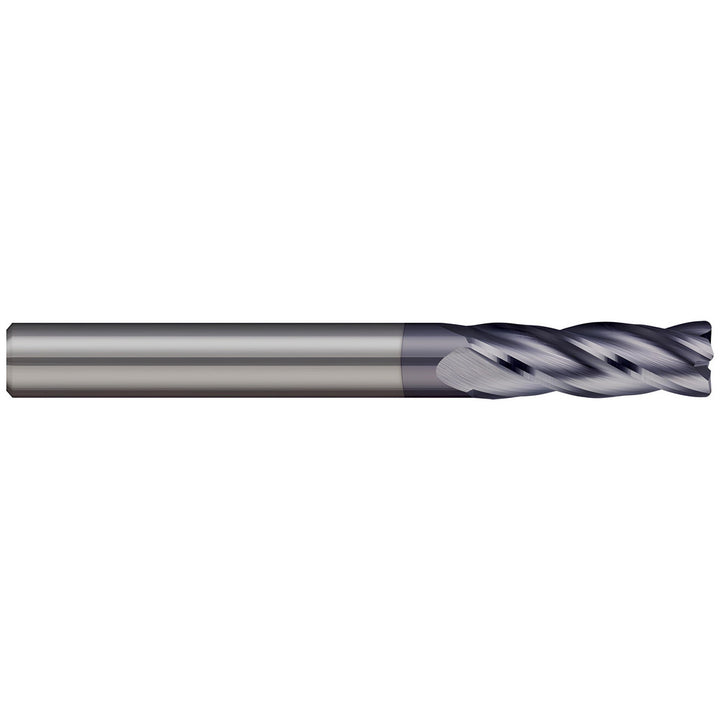

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Micro 100 GEC-375-4-010X

Micro 100

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Micro 100 GEC-375-4-010X

MFR# GEC-375-4-010XSeries GEC

$73.93List $84.81 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Micro 100 GEC-375-4-010X is a 3/8 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for stainless steel, superalloys & titanium. 7/8 length of cut, 2-1/2 overall length. Series GEC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0100
Corner radius tolerance0.0000 to -0.0005 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix styleMedium
Length of cut in7/8
Material applicationAlloy Steel; Stainless Steel; Tool Steel; Titanium; Inconel; Nickel; High-Temperature Alloy
Mill diameter in3/8
Mill diameter tolerance0.0000/-0.0020 in
Number of flutes4
Overall length in2-1/2
Primary workpiece materialStainless Steel; Superalloys & Titanium
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
