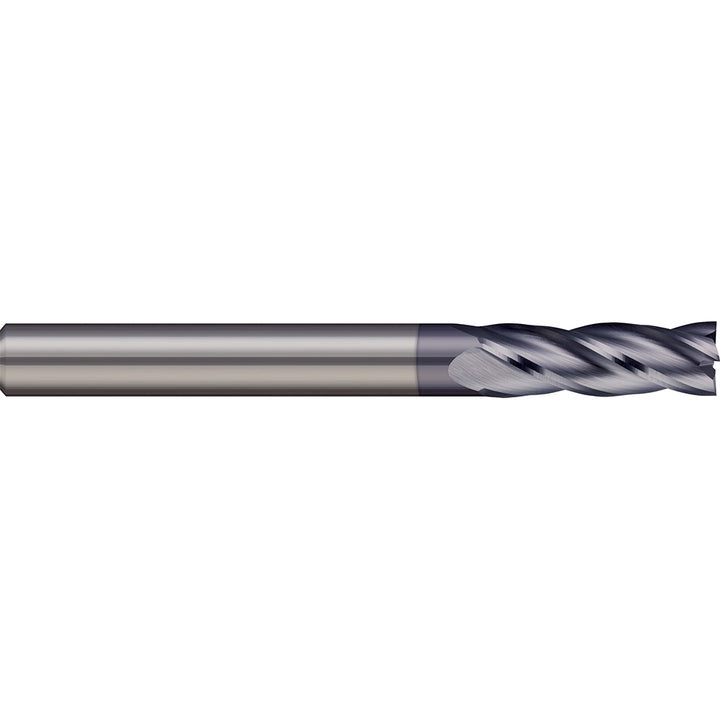

9/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Micro 100 GEM-140-4X

Micro 100

9/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Micro 100 GEM-140-4X

MFR# GEM-140-4XSeries GEM

$37.27List $43.51 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/64
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Micro 100 GEM-140-4X is a 9/64 4-flute Solid Carbide square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. 1/2 length of cut, 2 overall length. Series GEM.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Mill diameter in9/64
Number of flutes4
Overall length in2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter in3/16
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
