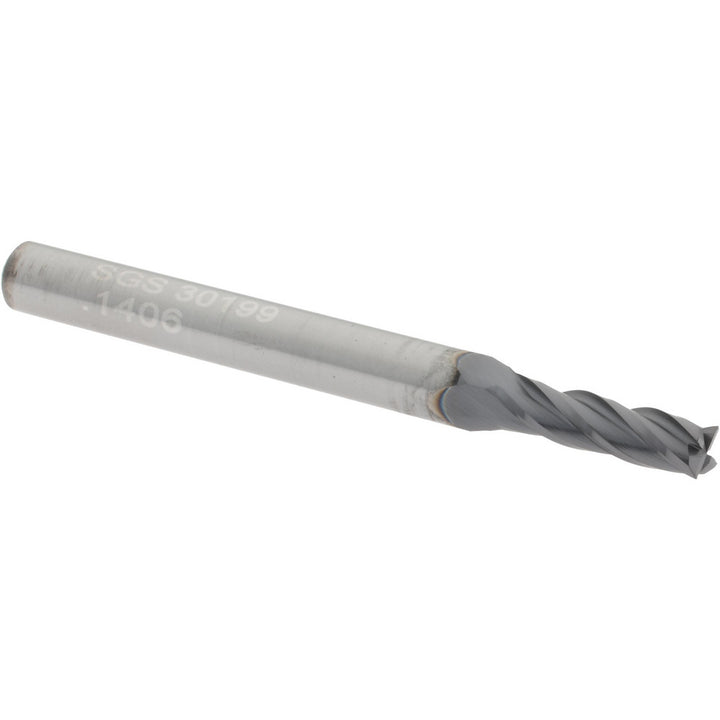

9/64" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 30199

SGS

9/64" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 30199

MFR# 30199Series 1

$22.68List $29.08 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/64
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 30199 is a 9/64 4-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 2 overall length. Series 1.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeRegular
Material gradeMicrograin
Mill diameter in9/64
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
