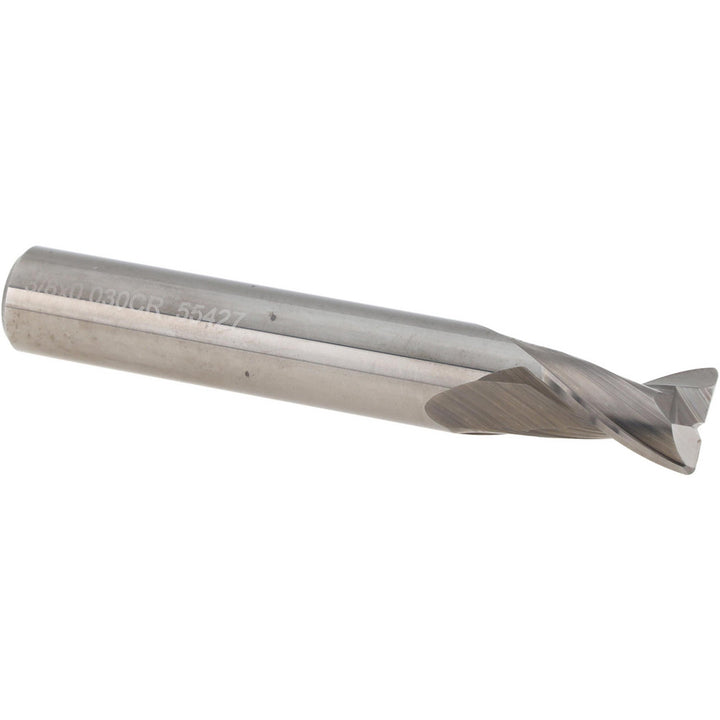

3/8" 2-Flute Solid Carbide Corner Radius End Mill - OSG 20213500

MFR# 20213500Series 2021

$51.04List $65.47 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The OSG 20213500 is a 3/8 2-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 1/2 length of cut, 2-1/2 overall length. Series 2021.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in1/2

Length typeStub

Material applicationNon-Ferrous Metal

Material removal typeRoughing

Mill diameter in3/8

Mill diameter tolerance0.0000/-0.0020 in

Number of flutes2

Overall length in2-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
