OSG

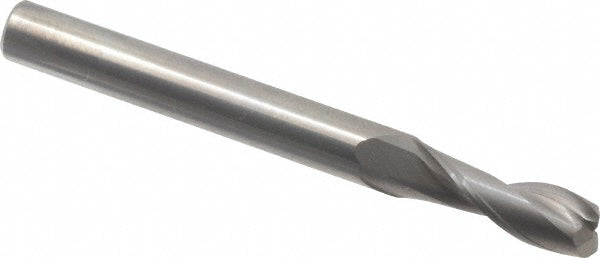

1/4" 2-Flute Solid Carbide Corner Radius End Mill - OSG 20221800

MFR# 20221800Series 2022

$44.92List $57.61 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialSolid Carbide

CoatingUncoated

Description

The OSG 20221800 is a 1/4 2-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series 2022.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleMedium

Length of cut in3/4

Length typeRegular

Material applicationNon-Ferrous Metal

Material removal typeRoughing

Mill diameter in1/4

Mill diameter tolerance0.0000 to -0.0020 in

Number of flutes2

Overall length in2-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
