OSG

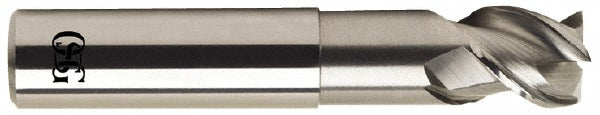

1/4" 3-Flute Solid Carbide Corner Radius End Mill - OSG 20430300

MFR# 20430300Series 2043

$47.96List $61.50 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

The OSG 20430300 is a 1/4 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 1/4 length of cut, 2-1/2 overall length. Series 2043.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut in1/4

Length typeRegular

Material applicationNon-Ferrous Metal

Material removal typeRoughing

Mill diameter in1/4

Mill diameter tolerance0.0000 to -0.0020 in

Neck diameter0.2460

Number of flutes3

Overall length in2-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in1-1/8

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
