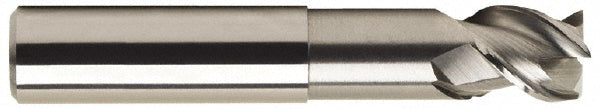

1" 3-Flute Solid Carbide Square End Mill - OSG 20481700

OSG

1" 3-Flute Solid Carbide Square End Mill - OSG 20481700

MFR# 20481700Series 2048

$463.35List $594.26 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes3
MaterialSolid Carbide

Description

The OSG 20481700 is a 1 3-flute Solid Carbide square end mill. 1 length of cut, 6 overall length. Series 2048.

Specifications

CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeLong
Mill diameter in1
Mill diameter tolerance+0.000/-0.002 in
Neck diameter0.9920
Number of flutes3
Overall length in6
Reach length in3-3/8
Shank diameter in1
Variable helixNo
Variable indexNo
