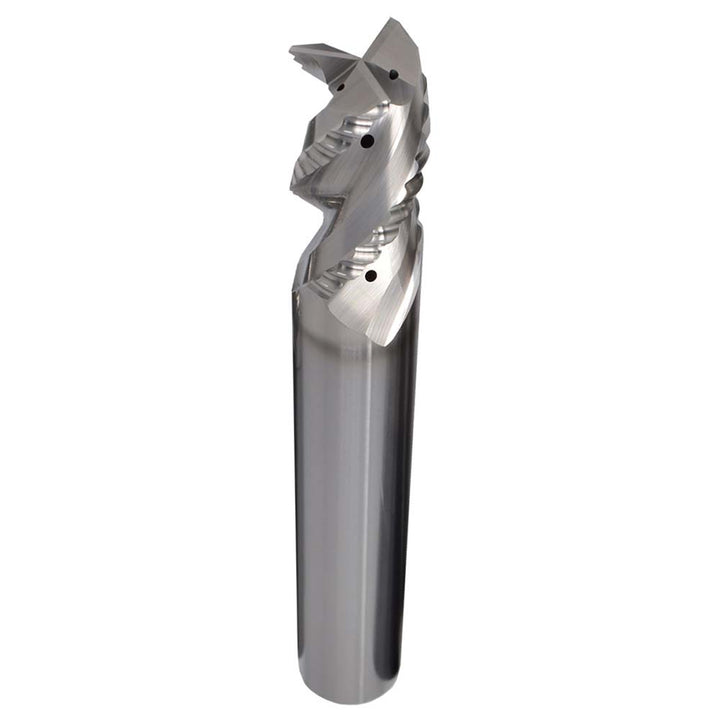

1" 3-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 34126

MFR# 34126Series APR3

$747.28List $958.42 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes3

MaterialSolid Carbide

CoatingTIB2

Description

The SGS 34126 is a 1 3-flute Solid Carbide (Micrograin) corner radius end mill with a TIB2 finish for longer tool life. Suited for non-ferrous metal. 1-3/4 length of cut, 4-1/2 overall length. Series APR3.

Specifications

CentercuttingNo

ChipbreakerYes

Coating finishTIB2

Coolant throughYes

Corner radius0.0900

Corner radius tolerance-0.0020 to 0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in1-3/4

Length typeShort

Manufacturers catalog number34126

Material applicationNon-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing

Mill diameter in1

Mill diameter tolerance-0.0004 to -0.0040 in

Neck diameter0.9500

Number of flutes3

Overall length in4-1/2

Overall length tolerance+0.0620 to -0.0620 in

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in2-1/2

Shank diameter in1

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
