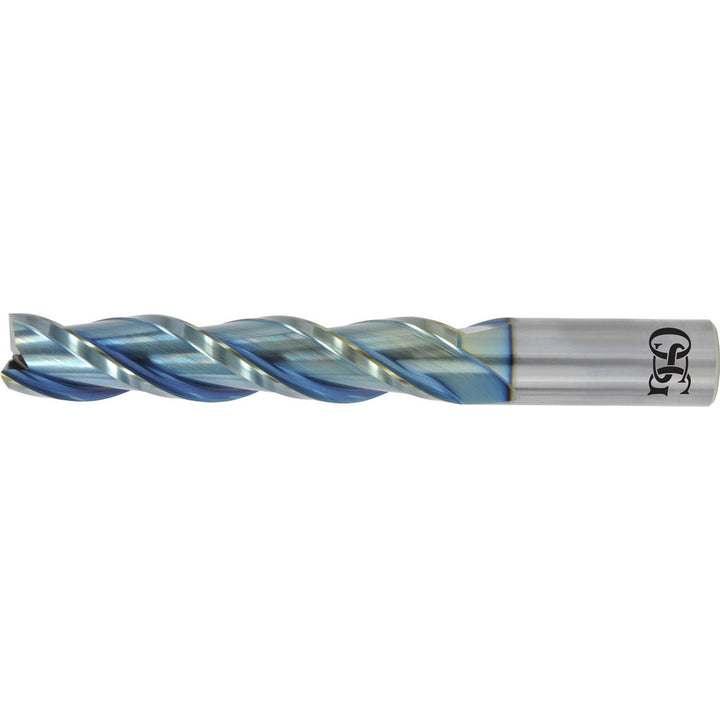

1/2" 3-Flute Solid Carbide Corner Radius End Mill, DLC - OSG 28430400

OSG

1/2" 3-Flute Solid Carbide Corner Radius End Mill, DLC - OSG 28430400

MFR# 28430400Series 2843

$233.36List $299.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide
CoatingDLC

Description

The OSG 28430400 is a 1/2 3-flute Solid Carbide corner radius end mill with a DLC finish for longer tool life. Suited for non-ferrous metal. 2 length of cut, 4-1/2 overall length. Series 2843.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishDLC
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in2
Length typeLong
Material applicationNon-Ferrous Metal
Material removal typeRoughing
Mill diameter in1/2
Mill diameter tolerance0.0000/-0.0008 in
Number of flutes3
Overall length in4-1/2
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
