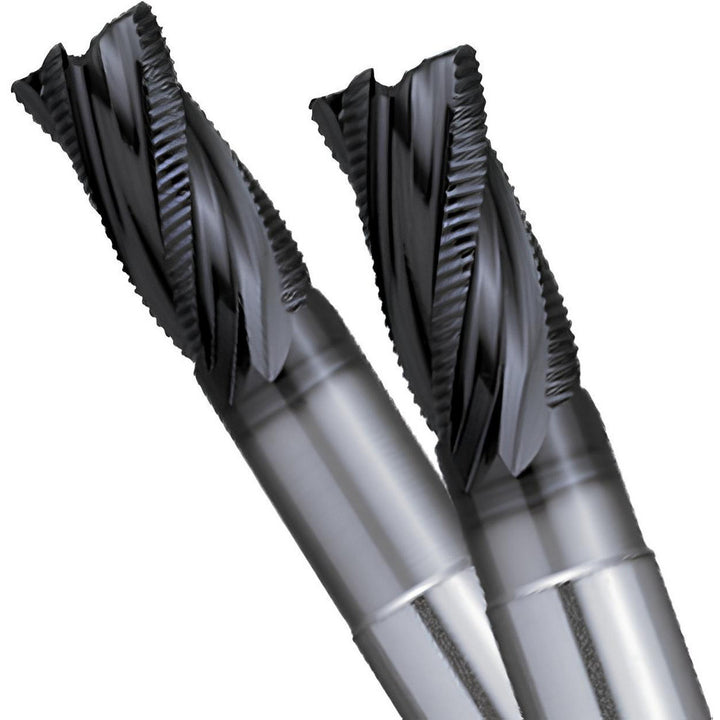

0.3937" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - OSG 3017410

MFR# 3017410Series 3915

$181.05List $232.20 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The OSG 3017410 is a 0.3937 4-flute Solid Carbide (WXL) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, cast iron. Series 3915.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length (mm)0.50

Chamfer width (mm)0.50

ChipbreakerYes

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix styleLow

Length of cut (mm)22.00

Length typeRegular

Manufacturers catalog number3017410

Material gradeWXL

Material removal typeRoughing & Finishing

Mill diameter0.3937

Mill diameter tolerance+0.000 to -0.050 mm

Number of flutes4

Overall length (mm)8.00

PitchNormal

Primary workpiece materialSteel; Cast Iron

Reach length (mm)22.00

Secondary workpiece materialStainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter (mm)10.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
