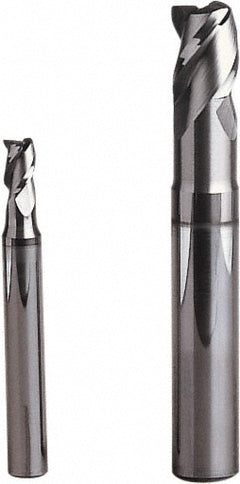

0.2362" 3-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 3092063

MFR# 3092063Series 9576

$341.47List $437.96 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingWXS

Description

The OSG 3092063 is a 0.2362 3-flute Solid Carbide corner radius end mill with a WXS finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. Series 9576.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWXS

Coolant throughNo

Corner radius0.0591

Corner radius tolerance0.03 to -0.03 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut1.5600

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Hard Material

Material removal typeRoughing

Mill diameter0.2362

Mill diameter tolerance0.01 to -0.01 mm

Neck diameter (mm)5.80

Number of flutes3

Overall length (mm)100.00

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Reach length (mm)54.00

Shank diameter (mm)6.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
