Seco

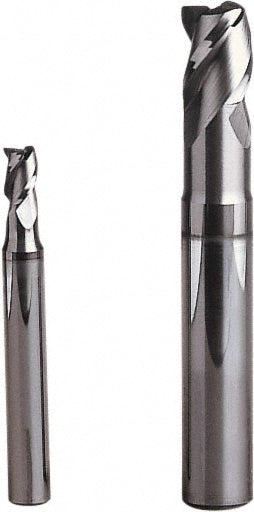

0.2362" 3-Flute Solid Carbide Corner Radius End Mill, MEGA - Seco 00022006

MFR# 00022006Series JH910

$173.40List $214.92 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingMEGA

Description

The Seco 00022006 is a 0.2362 3-flute Solid Carbide corner radius end mill with a MEGA finish for longer tool life. Suited for steel, stainless steel, cast iron, high temperature alloy. Series JH910.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishMEGA

Coolant throughNo

Corner radius0.0118

Corner radius tolerance-0.01 to 0.01 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix styleHigh

Length of cut1.8750

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; Superalloy

Material removal typeRoughing

Mill diameter0.2362

Mill diameter tolerance-0.02 to -0.03 mm

Neck diameter0.2200

Number of flutes3

Overall length (mm)80.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High Temperature Alloy

Reach length1.2360

Shank diameter (mm)6.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0004

Variable helixNo

Variable indexNo
