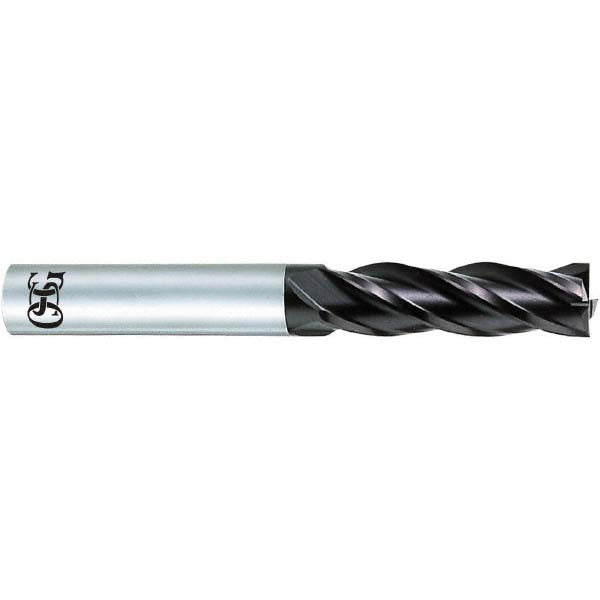

0.1378" 4-Flute Solid Carbide Square End Mill, WXL - OSG 37420001

OSG

0.1378" 4-Flute Solid Carbide Square End Mill, WXL - OSG 37420001

MFR# 37420001

$89.68List $115.01 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingWXL

Description

The OSG 37420001 is a 0.1378 4-flute Solid Carbide (Micrograin) square end mill with a WXL finish for longer tool life. 0.5512 length of cut.

Specifications

CentercuttingYes
Coating finishWXL
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut0.5512
Length of cut range0.5000 - 0.6000
Material gradeMicrograin
Mill diameter0.1378
Number of flutes4
Overall length (mm)50
Shank diameter0.2362
Variable helixNo
Variable indexNo
