OSG

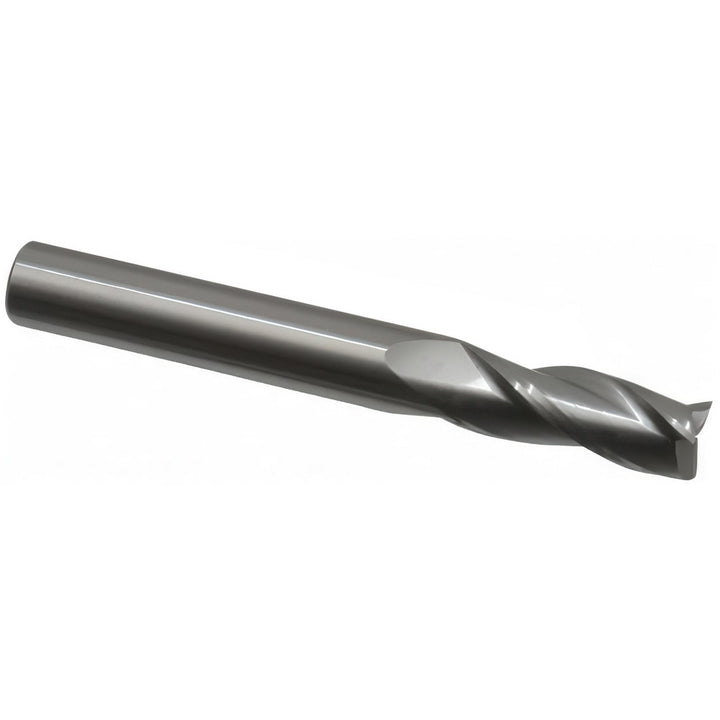

0.0394" 3-Flute Solid Carbide Square End Mill, TiAlN - OSG 403-039411

MFR# 403-039411Series 403

$21.35List $27.38 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG 403-039411 is a 0.0394 3-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, hardened materials. 0.1181 length of cut. Series 403.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coating finish familyTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.1181

Length of cut range0.1000 - 0.2000

Length typeRegular

Material gradeMicrograin

Mill diameter0.0394

Number of flutes3

Overall length (mm)39.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; Hardened Materials

Shank diameter0.1181

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
