9/16" 3-Flute Solid Carbide Square End Mill - OSG 403-5625

OSG

9/16" 3-Flute Solid Carbide Square End Mill - OSG 403-5625

MFR# 403-5625Series 403

$77.65List $99.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/16
Flutes3
MaterialSolid Carbide

Description

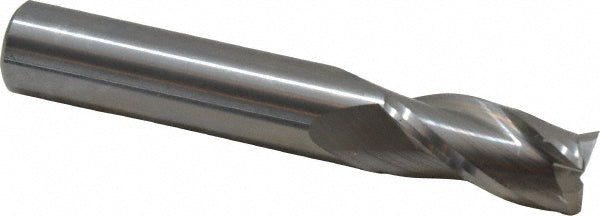

The OSG 403-5625 is a 9/16 3-flute Solid Carbide (Micrograin) square end mill. 1-1/8 length of cut, 3-1/2 overall length. Series 403.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter in9/16
Number of flutes3
Overall length in3-1/2
Shank diameter in9/16
Variable helixNo
Variable indexNo
