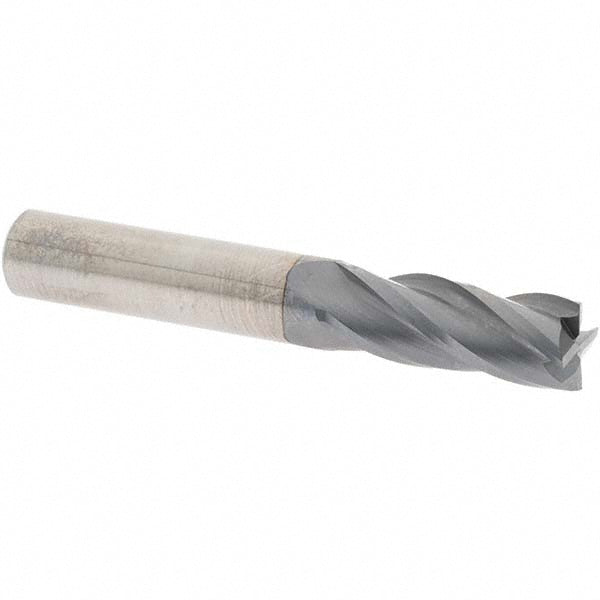

3/8" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 404-375008

OSG

3/8" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 404-375008

MFR# 404-375008Series 404

$39.57List $50.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The OSG 404-375008 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill. 7/8 length of cut, 2-1/2 overall length. Series 404.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in7/8
Length of cut range0.8000 - 1.0000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
