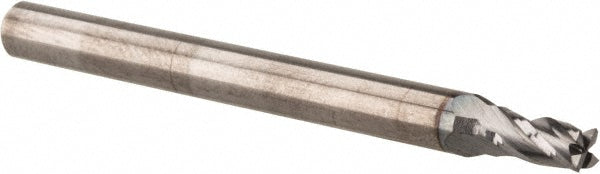

3/32" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 414-093808

OSG

3/32" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 414-093808

MFR# 414-093808Series 414

$12.62List $16.19 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The OSG 414-093808 is a 3/32 4-flute Solid Carbide (Micrograin) square end mill. 3/16 length of cut, 1-1/2 overall length. Series 414.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length of cut range0.1000 - 0.2000
Length typeStub
Material gradeMicrograin
Mill diameter in3/32
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
