SGS
3/32" 4-Flute Solid Carbide Square End Mill, TiN - SGS 31449
MFR# 31449Series 14
$30.54List $38.49
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/32
Flutes4
MaterialSolid Carbide
CoatingTiN
Description

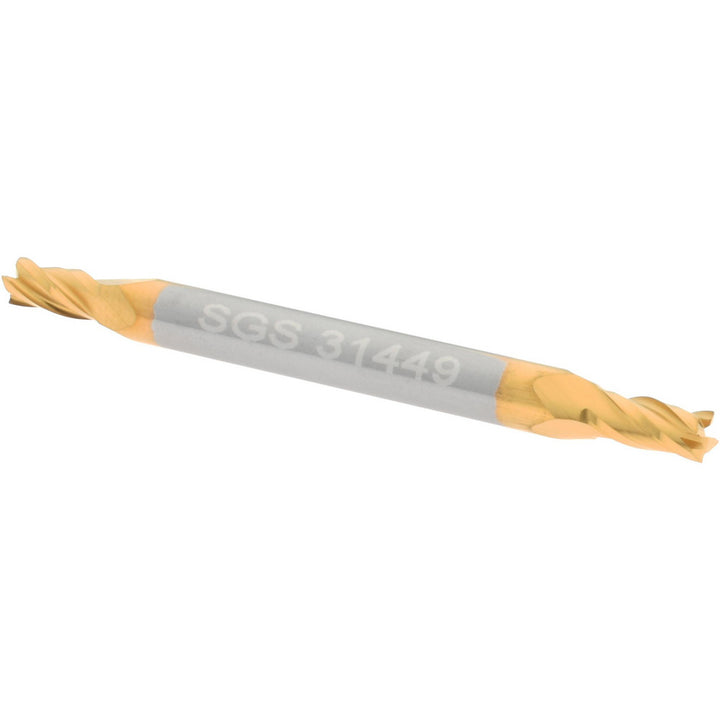

The SGS 31449 is a 3/32 4-flute Solid Carbide (Micrograin) square end mill. 3/16 length of cut, 1-1/2 overall length. Series 14.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length of cut range0.1000 - 0.2000
Length typeStub
Material gradeMicrograin
Mill diameter in3/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
