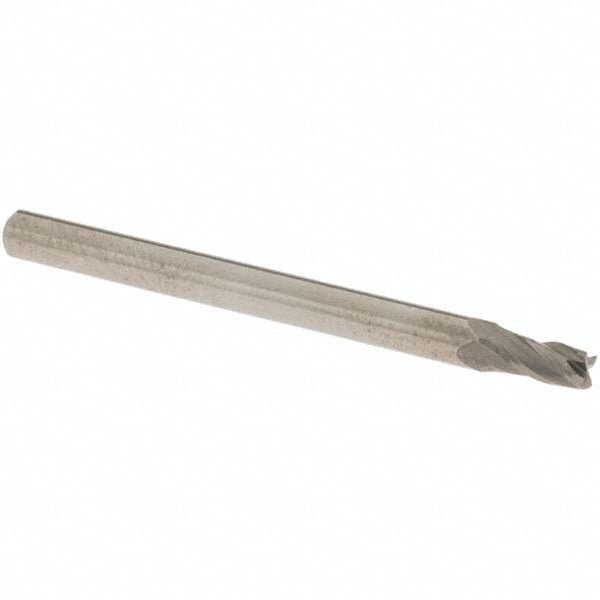

0.0984" 4-Flute Solid Carbide Square End Mill - OSG 414-0984

OSG

0.0984" 4-Flute Solid Carbide Square End Mill - OSG 414-0984

MFR# 414-0984Series 414

$11.16List $14.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

The OSG 414-0984 is a 0.0984 4-flute Solid Carbide (Micrograin) square end mill. 0.1969 length of cut. Series 414.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1969
Length of cut range0.1000 - 0.2000
Length typeStub
Material gradeMicrograin
Mill diameter0.0984
Number of flutes4
Overall length (mm)39.00
Shank diameter (mm)3.00
Variable helixNo
Variable indexNo
