0.1772" 4-Flute Solid Carbide Square End Mill - OSG 414-1772

OSG

0.1772" 4-Flute Solid Carbide Square End Mill - OSG 414-1772

MFR# 414-1772Series 414

$14.89List $19.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

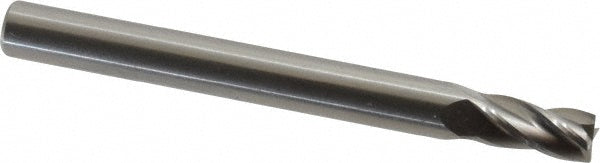

The OSG 414-1772 is a 0.1772 4-flute Solid Carbide (Micrograin) square end mill. 0.3543 length of cut. Series 414.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.3543
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter0.1772
Number of flutes4
Overall length (mm)51.00
Shank diameter (mm)5.00
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

M.A. Ford.0.1772" 4-Flute Solid Carbide Square End Mill, ALtima - M.A. Ford. 17717700A $46.96 SGS0.1772" 4-Flute Solid Carbide Square End Mill - SGS 41633 $21.84 SGS0.1772" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 49164 $24.35 Guhring0.1772" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9036780045000 $47.19
