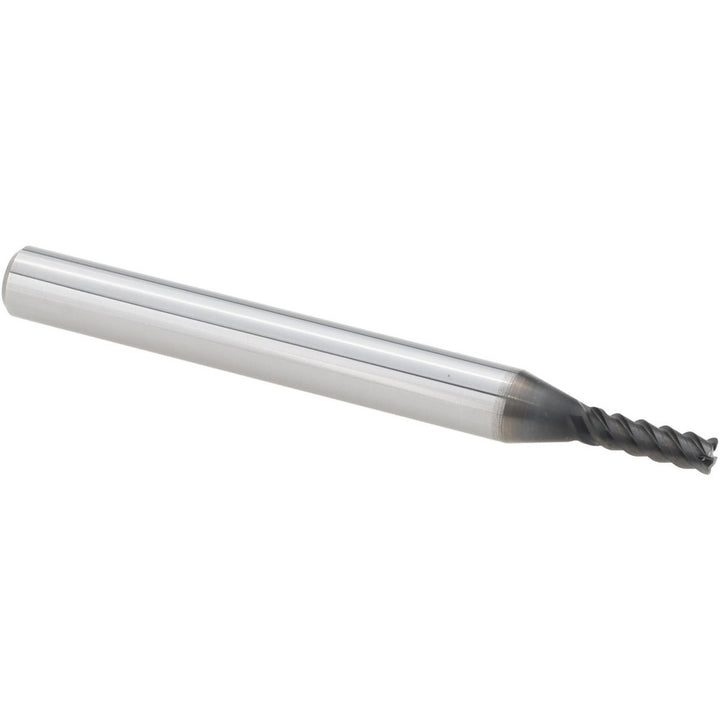

1/8" 4-Flute Solid Carbide Corner Radius End Mill, Cr - OSG 44450001

OSG

1/8" 4-Flute Solid Carbide Corner Radius End Mill, Cr - OSG 44450001

MFR# 44450001Series 4445

$90.00List $115.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingCr

Description

The OSG 44450001 is a 1/8 4-flute Solid Carbide corner radius end mill with a Cr finish for longer tool life. Suited for steel, cast iron, hard material. 3/8 length of cut, 2-1/2 overall length. Series 4445.

Specifications

Additional informationExocarb-WXL End Mills Are The New Industry Standard for Hard Milling. Everything About WXS Is Designed for Rigidity & Performance In Hardened Steel 50 Hrc & Greater. SubstratesGeometry& Proprietary WXS Coating Are All Specifically Tailored for Hardened St
CentercuttingYes
ChipbreakerNo
Coating finishCr
Coolant throughNo
Corner radius0.0100
Corner radius tolerance+0.0002 to -0.0002 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in3/8
Length typeRegular
Manufacturers catalog number44450001
Material applicationSteel; Cast Iron; Hardened Steel
Material removal typeRoughing & Finishing
Mill diameter in1/8
Mill diameter tolerance+0.0008/-0.0008 in
Number of flutes4
Overall length in2-1/2
PitchNormal
Primary workpiece materialSteel; Cast Iron; Hard Material
Reach length in3/8
Secondary workpiece materialStainless Steel
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
