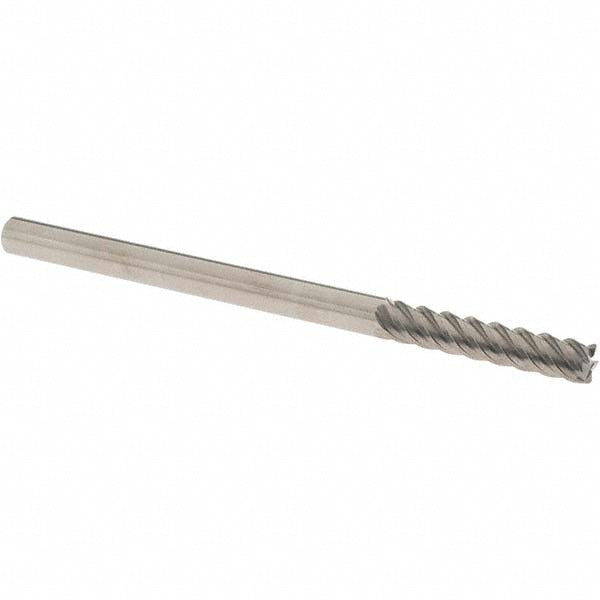

1/4" 5-Flute Solid Carbide Square End Mill - OSG 455-2502

OSG

1/4" 5-Flute Solid Carbide Square End Mill - OSG 455-2502

MFR# 455-2502Series 455C

$31.59List $40.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes5
MaterialSolid Carbide

Description

The OSG 455-2502 is a 1/4 5-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 4 overall length. Series 455C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Material gradeMicrograin
Mill diameter in1/4
Number of flutes5
Overall length in4
Shank diameter in1/4
Variable helixNo
Variable indexNo
