3/8" 5-Flute Solid Carbide Square End Mill, TiCN - OSG 455-375208

OSG

3/8" 5-Flute Solid Carbide Square End Mill, TiCN - OSG 455-375208

MFR# 455-375208Series 455C

$43.73List $56.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingTiCN

Description

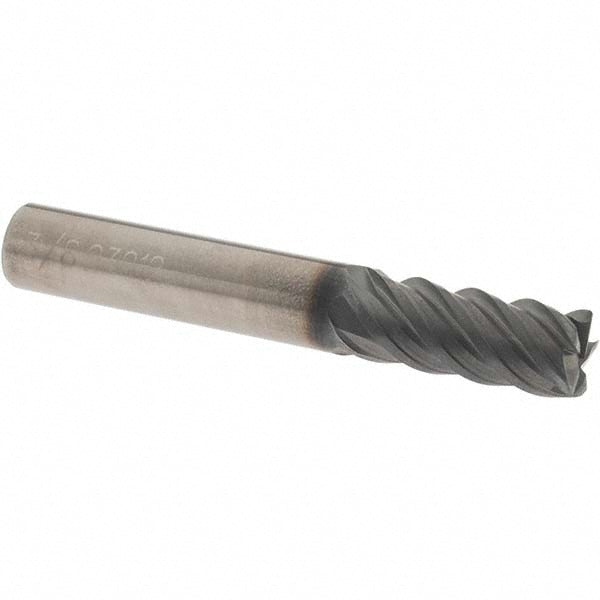

The OSG 455-375208 is a 3/8 5-flute Solid Carbide (Micrograin) square end mill. 7/8 length of cut, 2-1/2 overall length. Series 455C.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in7/8
Length of cut range0.8000 - 1.0000
Material gradeMicrograin
Mill diameter in3/8
Number of flutes5
Overall length in2-1/2
Shank diameter in3/8
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
