0.3937" 4-Flute Solid Carbide Square End Mill - OSG 464-3937

OSG

0.3937" 4-Flute Solid Carbide Square End Mill - OSG 464-3937

MFR# 464-3937Series 464

$47.43List $60.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

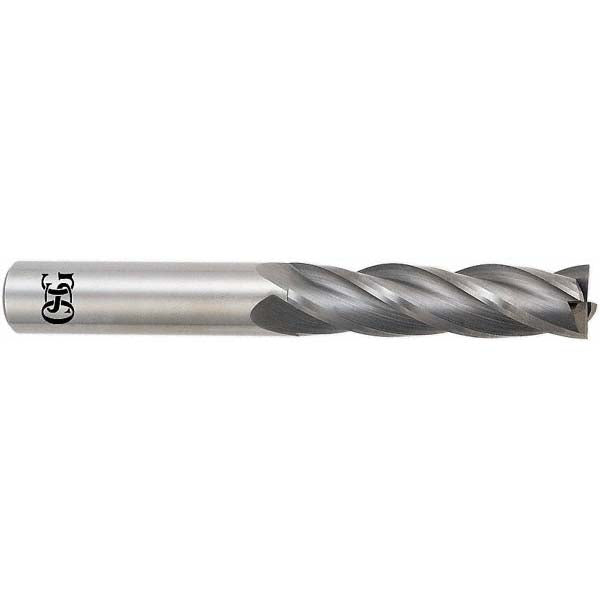

The OSG 464-3937 is a 0.3937 4-flute Solid Carbide square end mill. 1.2598 length of cut. Series 464.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut1.2598
Length of cut range1.2500 - 1.5000
Length typeLong
Mill diameter0.3937
Number of flutes4
Overall length (mm)76.00
Shank diameter (mm)10.00
Variable helixNo
Variable indexNo
