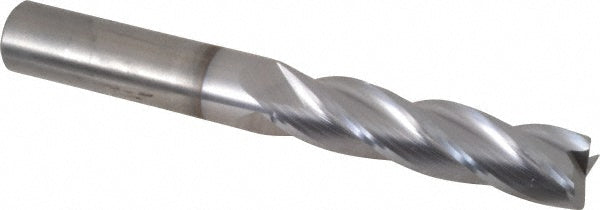

1/2" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 464-500008

OSG

1/2" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 464-500008

MFR# 464-500008Series 464

$99.91List $128.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The OSG 464-500008 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill. 2 length of cut, 4 overall length. Series 464.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2
Length of cut range2.0000+
Length typeLong
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in4
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
