3/4" 3-Flute Cobalt Square End Mill - OSG 5323100

OSG

3/4" 3-Flute Cobalt Square End Mill - OSG 5323100

MFR# 5323100Series 532

$131.22List $168.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes3
MaterialCobalt

Description

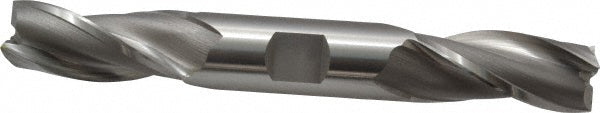

The OSG 5323100 is a 3/4 3-flute Cobalt (M42) square end mill. 1-5/8 length of cut, 5-5/8 overall length. Series 532.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeM42
Mill diameter in3/4
Number of flutes3
Overall length in5-5/8
Shank diameter in3/4
Variable helixNo
Variable indexNo
