OSG
5/8" 3-Flute Cobalt Square End Mill - OSG 5362100
MFR# 5362100Series 536
$67.79List $86.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes3
MaterialCobalt
Description

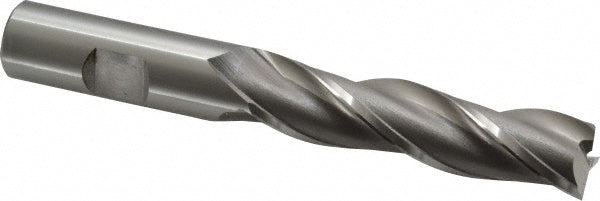

The OSG 5362100 is a 5/8 3-flute Cobalt (M42) square end mill. 2-1/2 length of cut, 4-5/8 overall length. Series 536.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2-1/2
Length of cut range2.0000+
Length typeLong
Material gradeM42
Mill diameter in5/8
Number of flutes3
Overall length in4-5/8
Shank diameter in5/8
Variable helixNo
Variable indexNo
