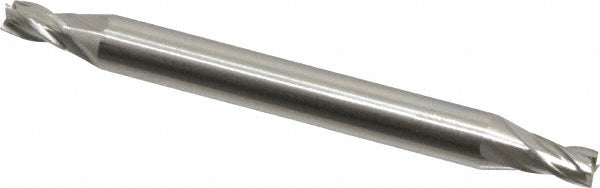

1/8" 4-Flute Cobalt Square End Mill - OSG 5667600

OSG

1/8" 4-Flute Cobalt Square End Mill - OSG 5667600

MFR# 5667600Series 566

$32.65List $41.87 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialCobalt

Description

The OSG 5667600 is a 1/8 4-flute Cobalt (M42) square end mill. 3/16 length of cut, 2 overall length. Series 566.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length of cut range0.1000 - 0.2000
Length typeStub
Material gradeM42
Mill diameter in1/8
Number of flutes4
Overall length in2
Shank diameter in3/16
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

GWS1/8" 4-Flute Solid Carbide Square End Mill, ALCRO-MAX - GWS 310697 $36.25 Hertel1/8" 4-Flute High Speed Steel Square End Mill - Hertel GG99914179 $15.98 OSG1/8" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG HP411-1250 $33.41 GWS1/8" 4-Flute Solid Carbide Square End Mill, ALCRO-MAX - GWS 310709 $39.37
