RobbJack

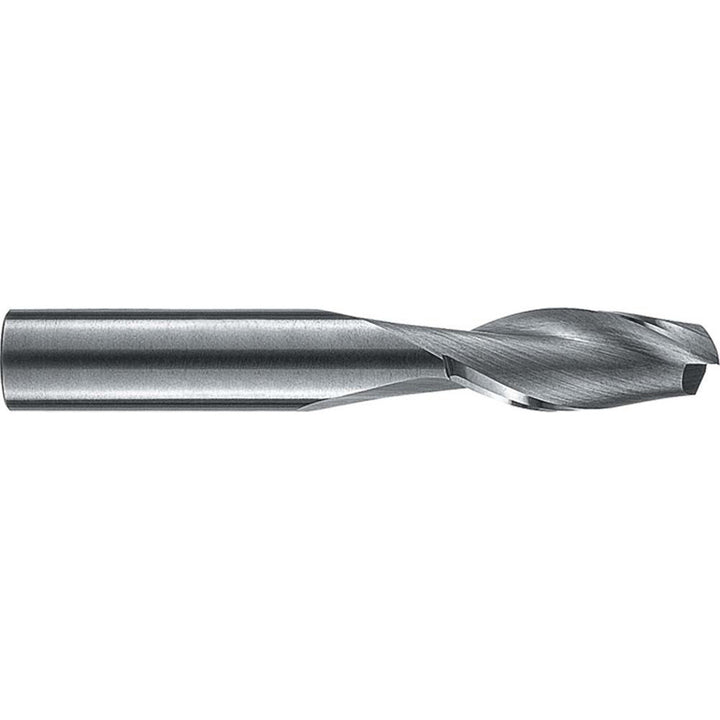

3/8" 2-Flute Solid Carbide Square End Mill - RobbJack NR-204-12
MFR# NR-204-12Series NR-204
$66.50List $72.65
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes2
MaterialSolid Carbide
Description
The RobbJack NR-204-12 is a 3/8 2-flute Solid Carbide (C2) square end mill. 7/8 length of cut, 2-1/2 overall length. Series NR-204.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in7/8
Length typeRegular
Material gradeC2
Mill diameter in3/8
Mill diameter tolerance+0.001/-0.000 in
Number of flutes2
Overall length in2-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
