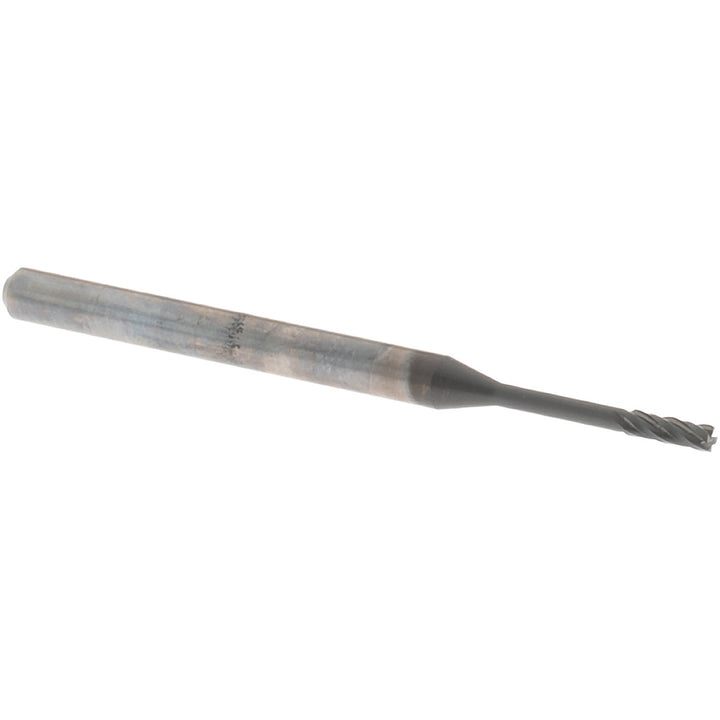

1/16" 4-Flute Solid Carbide Square End Mill - OSG 70400316

OSG

1/16" 4-Flute Solid Carbide Square End Mill - OSG 70400316

MFR# 70400316Series 7040

$108.76List $139.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes4
MaterialSolid Carbide

Description

The OSG 70400316 is a 1/16 4-flute Solid Carbide (Micrograin) square end mill. 3/16 length of cut, 1-3/4 overall length. Series 7040.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length of cut range0.1000 - 0.2000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/16
Mill diameter tolerance+0.000/-0.002 in
Neck diameter0.0560
Number of flutes4
Overall length in1-3/4
Reach length in1/2
Shank diameter in1/8
Variable helixNo
Variable indexNo
