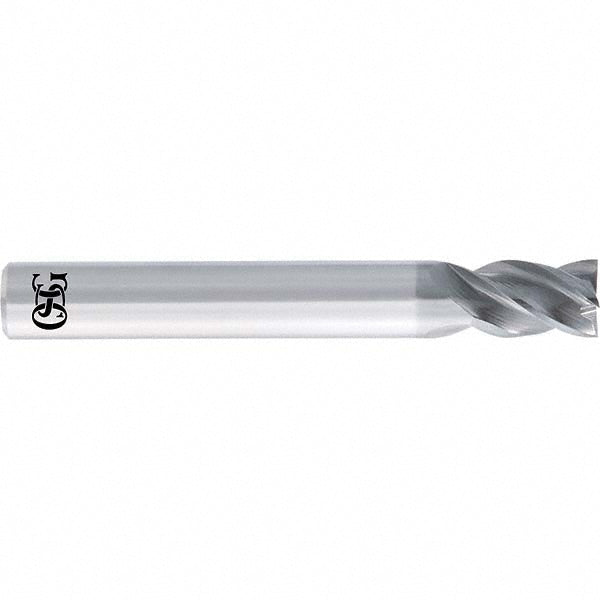

1/2" 4-Flute Solid Carbide Square End Mill - OSG 82001221

OSG

1/2" 4-Flute Solid Carbide Square End Mill - OSG 82001221

MFR# 82001221Series 8200

$91.48List $117.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide

Description

The OSG 82001221 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length. Series 8200.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeStraight
Length of cut in5/8
Length typeStub
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.0000/-0.0012 in
Number of flutes4
Overall length in2-1/2
Shank diameter in1/2
Variable helixYes
Variable indexYes
