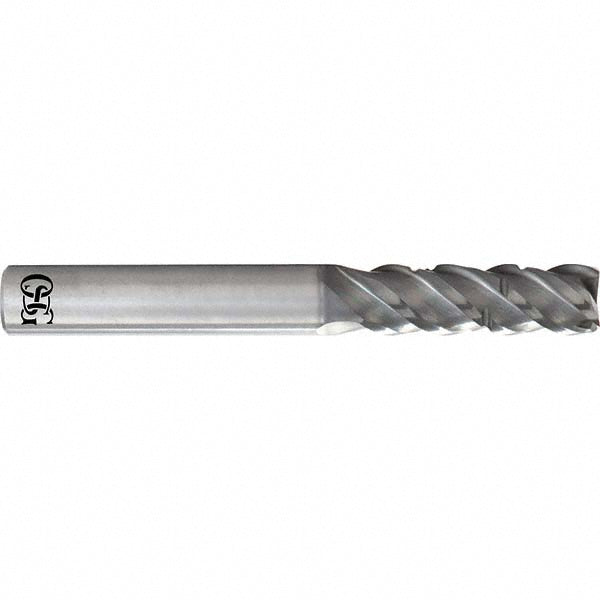

0.3750" 4-Flute Solid Carbide Square End Mill, Duarise - OSG 82020421

OSG

0.3750" 4-Flute Solid Carbide Square End Mill, Duarise - OSG 82020421

MFR# 82020421Series 8202

$112.22List $143.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingDuarise

Description

The OSG 82020421 is a 0.3750 4-flute Solid Carbide square end mill with a Duarise finish for longer tool life. 1-1/8 length of cut. Series 8202.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishDuarise
Corner radius0.0000
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSquare
Extended reachNo
Flute directionRight Hand
Length of cut in1-1/8
Length typeLong
Mill diameter0.3750
Mill diameter frac in3/8
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes4
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight
Single or double endSingle
Variable helixYes
