OSG

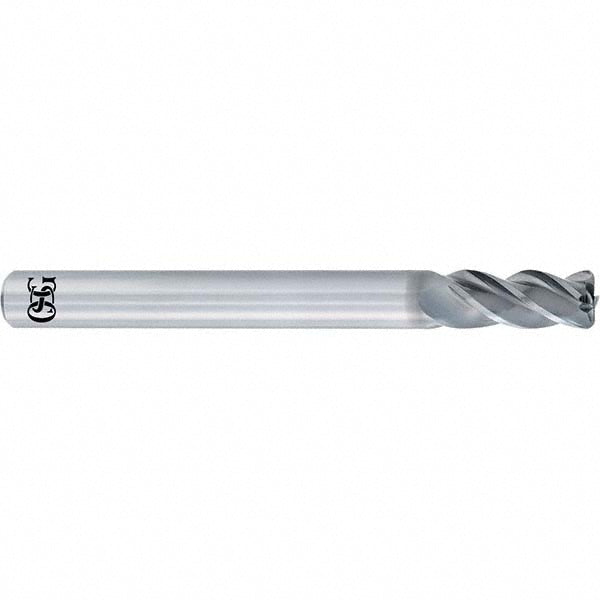

5/16" 4-Flute Solid Carbide Corner Radius End Mill, Duarise - OSG 82101021

MFR# 82101021Series 8210

$62.18List $79.75 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingDuarise

Description

The OSG 82101021 is a 5/16 4-flute Solid Carbide corner radius end mill with a Duarise finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 13/16 length of cut, 2-1/2 overall length. Series 8210.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDuarise

Coolant throughNo

Corner radius0.0300

Corner radius tolerance0.0000 to -0.0008 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Length of cut in13/16

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in5/16

Mill diameter tolerance0.0000/-0.0008 in

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
