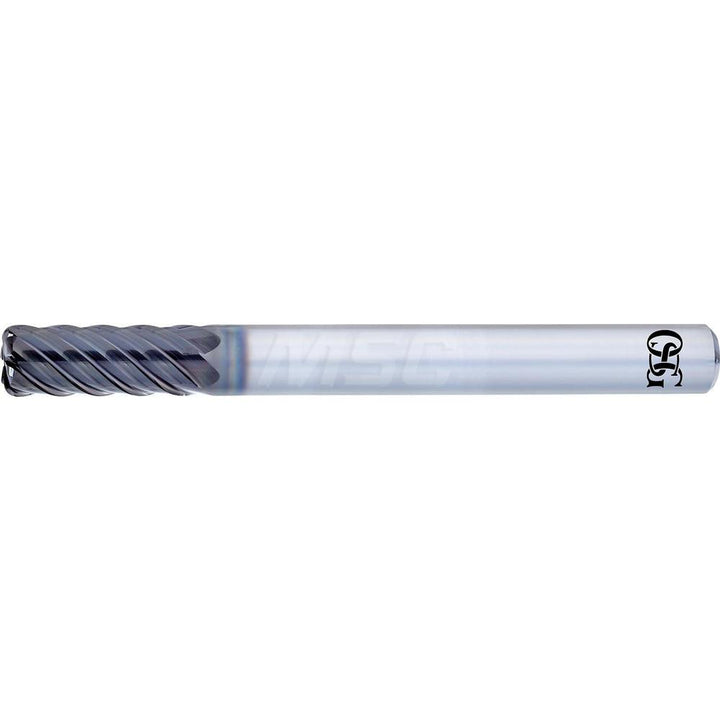

0.1575" 4-Flute Solid Carbide Corner Radius End Mill, Duarise - OSG 8549855

MFR# 8549855Series 8570

$81.62List $104.68 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingDuarise

Description

The OSG 8549855 is a 0.1575 4-flute Solid Carbide corner radius end mill with a Duarise finish for longer tool life. Suited for steel, hard material. Series 8570.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDuarise

Coolant throughNo

Corner radius (mm)0.50

Corner radius tolerance0.00 to -0.02 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut1.0000

Length typeRegular

Material applicationSteel; Hard Material

Material removal typeRoughing & Finishing

Mill diameter0.1575

Mill diameter tolerance0.00 to -0.02 mm

Number of flutes4

Overall length (mm)60.00

PitchNormal

Primary workpiece materialSteel; Hard Material

Shank diameter (mm)6.00

Shank diameter toleranceh4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
